数控球面滚子外径超精机
CNC outer diameter superfinishing machine for spherical rollers.
主要用途Main Purposes
本系列主要用于超精球面滚子外径。
It is mainly used for superfinishing O.D. of spherical roller.
主要结构与特点 Main Structures and Features
1、SIMENS、FANUC、MITSUBISHI等成套全数字伺服控制系统;
2、夹具:端面定位,成型滚轮支承;
3、摆头左右,上下移动均采用伺服控制;
4、采用双工位超精,粗、精超工步,工件转速、油石压力、振荡频率自动转换;双工位同步加工。
1、Adopting SIEMENS. FANUC. MITSUBISHI full digital AC servo-control system.
2、Clamp: end face for positioning, molding wheel support.
3、Oscillation and up and down movement of wheel head which are driven by servomotor.
4、Double processing position, rough and fine superfinishing, rotary speed of work, pressure of oilstone, oscillation frequency which are all converted automatically, the double processing position works synchronously.

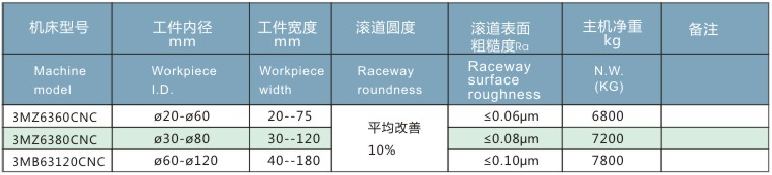

主要技术参数 Main technical parameters
