数控轴承套圈立式磨床
CNC bearing ring vertical grinder
主要用途Main Purposes
本系列磨床为多功能磨床，可用于磨削轴承套圈的各被加工表面，包括：内径、外径、直母线滚道、球轴承沟道、调心轴承滚道、挡 边、端面等；精度均达到或超过P4级轴承标准要求。
This series of grinders are multifunctional grinders, and they're mainly used to grind every surface, including bore, outer diameter, strait line raceway, ball groove, self-aligning raceway, rib, end face and so on. The processing level can reach P4 or over P4.
主要结构与特点 Main Structures and Features
1、 SIMENS全数字交流伺服控制系统
2、切入式或往复式磨削
3、电永磁磁盘、远程控制充退磁控制器，在操作面板数字调整磁力大小
4、工件主轴采用静压主轴或高精度轴承支承主轴，变频无级调速
5、砂轮轴：采用动静压主轴或高刚性电主轴，变频无级调速。
6、单点金刚笔自动修整
1、Adopting SIMENS all-digital AC servo control system.
2、Adopting the cut-in grinding or reciprocation grinding mode..
3、Electrical permanent chuck, magnetizing and demagnetizing controlled by remote control. The amount of magnetic power can be adjusted by digitals on operating panel.
4、Adopting a high-precision shaft with sleeve is used for workpiece with an adjustable speed by a variable frequency converter.
5、Workpiece shaft: Dynamic and static-pressure spindle or high precision bearing spindle.
6、Adopting single point diamond pen for dressing automatically.

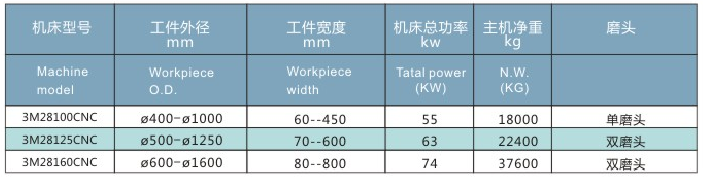

主要技术参数 Main technical parameters
