数控推力滚子轴承套圏滚道、挡边磨床
CNC raceway and ribs grinder for thrust roller bearings.
主要用途Main Purposes
本系列磨床主要用于磨削推力滚子轴承的内圈滚道和挡边,滚道和挡边一次装夹磨削。
The scries of grinders are mainly used for grinding the raceways and ribs of thrust roller bearings, and it also can be available for the bore of similar bearings.
主要结构与特点 Main Structures and Features
1、SIMENS、FANUC、MITSUBISHI等成套全数字伺服控制系统;
2、磨架进给、切入式磨削;
3、电磁无心夹具、远程控制充退磁控制器;
4、工件轴采用套筒式高精度工件轴,变频调速;
5、砂轮轴:采用电主轴或动静压主轴,可实现40-60m/s恒线速磨削;
6、双单点金刚笔自动修整。
1、SIEMENSN FANUCS MITSUBISHIfull digital AC servo-control system.
2、Grinding head feeding, Cut-in grinding.
3、Electromagnetic centerless clamp, magnetizing and demagnetizing controlled by remote control. The amount of magnetic power can be adjusted by digitals on operating panel.
4、High-precision shaft with sleeve and adjusting the speed by a variable frequency.
5、Wheel shaft: the dynamic and static-pressure spindles in order to realize to grind at a high-speed of 60m/s with a high precision and frequency-variable adjustable speed.
6、Adopting the double point diamond pen for dressing automatically

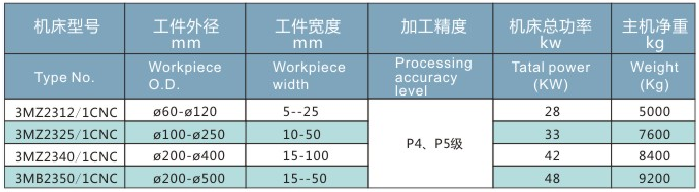

主要技术参数 Main technical parameters
